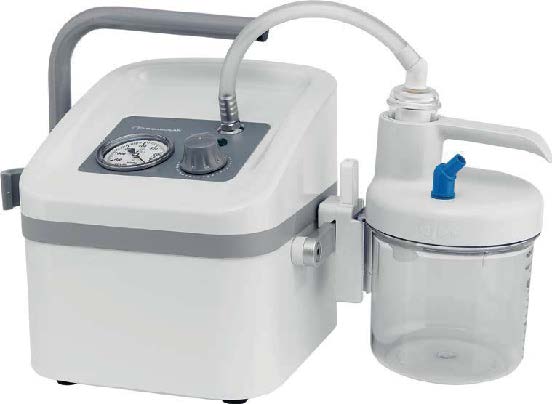

Vaculine Mini Aspirator

Vaculine Mini Aspirator

For bedside application

Portable

• 1 Liter collecting bottle

• Suitable for use with canister systems

• 0-600/620 mmHg vacuum range (at see level)

• Output: 20 L/min.

• Air filter

• Fluid aspiration into the pump:

        • Floating valve,
        • Hydrophobic filter:
        • Tight seal lid with clear view of the filter, enabling prompt filter change                                                                                                       • Filter allows free air-flow, but prevents fluid overflow, protecting the pump

• A seperate suction line holder on the side

• Polycarbonate canister compatible with steam sterilization

• Operation status indication lamp.

• Silent, dry vacuum pump.

• Design features to prevent airborn contamination in operating rooms and

  clean rooms. No requirement for periodic lubrication and maintenence.

• Motor speed: 1400 rpm.

• Mobile.

• Sturdy body construct with durable polyester dye .

• Rated voltage: 230V, 50/60Hz.

• Power consumption: 60W.

• Dimensions:

  Device : 345 x 250 x 305 mm

  Stand : Ø620 mm, Height: 720 mm.

• Weight : Device : 6 kg

                With stand: 12.5 kg.
