MED 340 PRO-ACTIVE

MED 340 PRO-ACTIVE

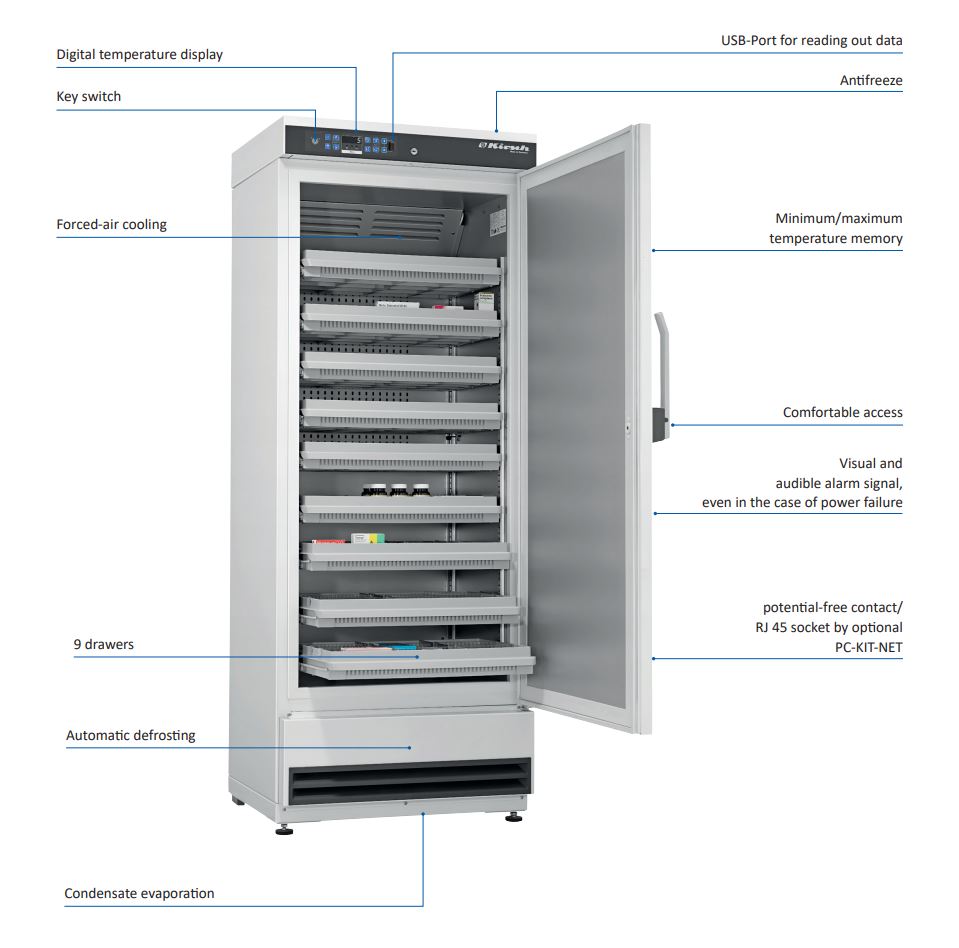

• PRO-ACTIVE-Control: Permanent, proactive monitoring of
the performance data and alerts in the case of deviations
– so that you can take countermeasures in good time
before a fault threatens your chilled goods; world´s most
accurate temperature control in refrigerated areas thanks
to two standard PT-1000 sensors.
• External housing made from galvanised sheet steel
(rustproof), with white, anti-scratch powder coating.
Length of the plug cable: approx. 2.8 m.
• Adjustable feet to compensate uneven floors.
• Interior made from smooth aluminium with colourless
protective coating. Gibs (every 15 mm) for flexible interior
arrangement.
• Interior consists of nine drawers with stops, on roller
runners. There are two adjustable length dividers and
nine adjustable cross dividers per drawer. Storage surface
per drawer = 0.16 m².
• Extra-thick 55-mm insulation, made from high-quality,
compression-moulded and environmentally friendly
material. Energy saving.
• Self-Closing-Door with easy-to-replace plastic magnetic
seal frame, lockable.
• Door hinge on the right-hand side (by default, see
illustration), or the left-hand side, can be retrofitted.
• Forced-air cooling, switches off automatically when you
open the door, ensures a uniform temperature and minimizes
temperature deviations.
• Automatic defrosting with time limit and temperature
monitoring.
• Condensate evaporation in the refrigerating machine
interior.
• Key switch protected control panel against tampering.
Membrane keyboard with digital temperature display and
minimum/maximum temperature memory.
• Warning functions with visual and audible alarm signal
in the case of temperature deviations and power failure.
In the case of power failure, the monitoring unit remains
in operation for approx. 30 hours on battery power. Door
open alarm after 60 seconds.
• Alarms can be forwarded using a potential-free contact
(e.g., to a mobile phone with optional GSM-Module or to
a control centre).
• Data documentation can be read via USB interface with
KIRSCH Datanet software
• Antifreeze against sub-zero temperatures.
• Statically ventilated refrigerating machine, hermetically
sealed, energy saving, low noise, easy to service.

Optional equipment :

• Glass door with lock.
• LED-Illumination mounted at the top or on side wall.
• Decorative door frame for attaching the customer‘s
decorative plates.
• Equipped with castors.
• Drawers on roller runners (a maximum of twelve drawers
is possible).
• Additional length and cross dividers.
• Top drawer can be locked.
• Shelf w x d = 52.7 x 39 cm on rails or overlays
(max. load: 40 kg).
• Condensate container can be emptied manually if no
condensation is required (e.g., in an operating theatre).
• 60 Hz cooling machinge upon request
• Vario Support, Storage Shelf on roller runners.
• GSM-Module for alarm text message transmission
(e.g., to a mobile phone).
• Temperature documentation:
– PC-KIT-STICK (network capable version)
– 4-pin PT 100 or PT 1000 temperature sensor, class
1/3 B, including built-in reference body (measurement
bottle or refrigerating block).
– Mechanical pen-recording thermometer with two
waxed paper strips.
