LABEX 520 PRO-ACTIVE

LABEX 520 PRO-ACTIVE

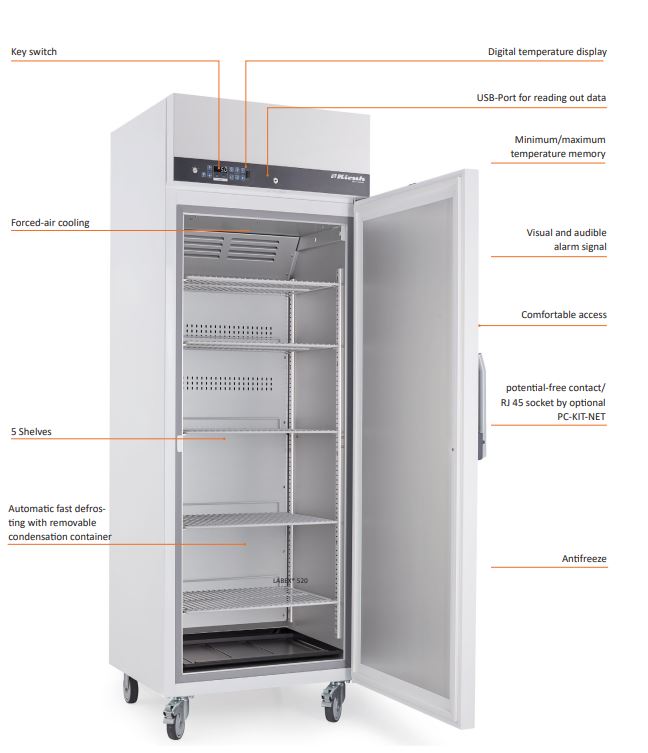

• PRO-ACTIVE- Control:
Permanent, proactive monitoring of the performance data
and alerts in the case of deviations – so that you can take
countermeasures in good time before a fault threatens
your chilled goods; world´s most accurate temperature
control in refrigerated areas thanks to two standard PT1000 sensors.
• External housing made from galvanised sheet steel (rustproof), with
white, anti-scratch powder coating. Length of
the plug cable: approx. 3 m.
• Equipped with castors.
• Interior made from smooth aluminium with colourless
protective coating. Gibs (every 15 mm) for flexible interior
arrangement.
• Interior consists of five shelves on brackets.
• Extra-thick 70-mm insulation, made from high-quality,
compression-moulded and environmentally friendly material. Energy saving.
• Self-closing door with easy-to-replace plastic magnetic
seal frame, lockable.

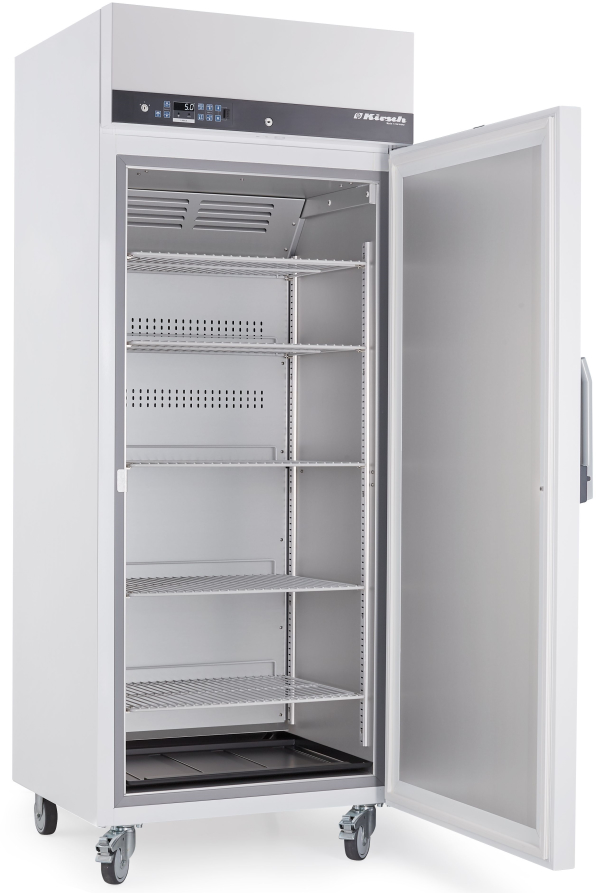

• Door hinge on the right-hand side as standard (see
illustration), or the left-hand side, can be retrofitted.
• Forced-air cooling, switches off automatically when you
open the door, ensures a uniform temperature and minimizes
temperature deviations.
• Valve controlled pressure compensation for easier door
opening.
• Automatic fast defrosting with time limit and temperature monitoring.
Defrost sensors are protected by safety
barriers.
• Removable condensation container.
• Power failure alarm (visual and audible alarm), the monitoring unit
remains in operation for approx. 30 hours on
battery power.
• Key switch protected control panel against tampering.
Membrane keyboard with digital temperature display and
minimum/maximum temperature memory. Control and
display sensors protected by safety barriers.
• Warning functions with visual and audible alarm signal in
the case of temperature deviations or other malfunctions.
Door open alarm after 60 seconds.
• Alarms can be forwarded using a potential-free contact
(e.g., to a mobile phone with optional GSM-Module or to
a control centre).
• Data documentation can be read via USB interface with
KIRSCH Datanet software.
• Antifreeze against sub-zero temperatures.
• Ventilation-enforced refrigerating machine, hermetically
sealed, energy saving, low-noise, easy to service.

Optional equipment :

• Glass door with lock.
• Adjustable feet to compensate uneven floors.
• Drawer conductive on roller runners
Only for LABEX® 520 PRO-ACTIVE: w x d x h = 57 x 39 x 5.6 cm
(a maximum of twelve drawers is possible).
• Additional length and cross dividers (for drawer).
• Additional shelf on rails or brackets.
• Basket on rails
LABEX® 520 PRO-ACTIVE: w x d x h = 60 x 45 x 10 cm,
LABEX® 720 PRO-ACTIVE: w x d x h = 60 x 65 x 10 cm.
• Aluminium tray with rails
LABEX® 520 PRO-ACTIVE: w x d x h = 60 x 40 x 2.5 cm,
LABEX® 720 PRO-ACTIVE: w x d x h = 60 x 65 x 2.5 cm.
• Outer housing in stainless steel 4301, longitudinal
brushed.
• GSM-Module for alarm text message transmission
(e.g., to a mobile phone).
• Water-cooled refrigerating machine.
• Temperature documentation.
– Temperature sensor PT 100 or PT 1000, with safety
barriers and reference body (measuring bottle or cold
block) is installed.
– 4-pin PT 100 or PT 1000 temperature sensor, class
1/3 B, including built-in reference body.
– Mechanical pen-recording thermometer with two
waxed paper strips
